Topographic Surveys

What is the importance of a Topographic Survey?

The topographic survey is the process of creating a detailed map of the surface of a land area, where a surveyor performs precise measurements to produce a topographic plan that represents the variations in the terrain and other geographical features.

What is a Topographic Survey?

The topographic survey involves the representation—either planimetric or altimetric—on a map or plan of notable points, as well as geographical features and other terrain details. This process is based on precision measurements, which include the use of optical equipment and GPS, conducted in the vicinity of a land area.

The different types of topographic surveys that can be used to measure the elements and characteristics of a terrain:



  • Planimetric Survey: The planimetric topographic survey, also known as Planimetry, is aimed at measuring the horizontal projections that define an area. This type of survey is primarily used to determine the boundaries of a terrain.

  • Altimetric Survey: The altimetric survey focuses on determining the elevations of a terrain. Also known as Altimetry, this method records the degree of slope of the land. Contour lines are planimetric representations of points on the terrain that share the same elevation. By connecting these points with lines, contour lines are created. The primary purpose of altimetry is to represent the terrain’s profile, providing essential information to depict the land’s characteristics.



    The altimetric topographic survey, or leveling, results in a topographic plan with contour lines that represent elevation variations and the natural features of the terrain. These contour lines do not include buildings, walls, or other non-natural structures.

  • Planimetric-Altimetric Survey: The planimetric-altimetric survey is the combination of planimetric and altimetric surveys. This method allows for recording both horizontal projections and altitude differences in the terrain, providing a more comprehensive mapping. This survey is essential in cases where detailed mapping of the terrain conditions is required.

  • Georeferenced Survey: A georeferenced survey is a topographic survey that includes geographic coordinates to precisely reference the location of the measured points.

What does a topographic survey contain?

A topographic survey may contain various types of information, although the extent and format of the data may vary according to the specific needs of the project. Typically, a topographic survey includes the following information:

  • Land Boundaries: This involves the representation of walls, fences, markers, or other elements that define the boundaries of the land in question.
  • Elevations and Contour Lines: Elevation points and contour lines are used to show the terrain’s morphology, revealing variations in elevation. This is important for understanding the land’s relief.
  • Location of Buildings: The survey may identify the location of buildings present on the land, as well as neighboring buildings when relevant.
  • Location of Infrastructure: Includes the identification and location of underground infrastructure, such as water, sewage, stormwater, electricity, telephone, gas networks, among others. The elevation (height) of these infrastructures may also be provided.
  • Location of Access Points: This covers roads, paths, and other access routes present on the land.
  • Geographic Coordinates: If requested, the topographic survey may include geographic coordinates to precisely reference the location of the measured points.

All this information is crucial for land planning, project development, and land management, as well as being useful in a variety of fields such as construction, urban planning, agriculture, civil engineering, and much more.

Here are some examples of topographic maps

What is the purpose of a topographic survey?

A topographic survey plays a crucial role in various stages of a project and has several important applications:

  • Determining Boundaries and Land Areas: It defines the boundaries and areas of urban and rural lands, providing essential information for land ownership and management.

  • In Agriculture: The topographic survey, in addition to being used for property registration and land boundary demarcation, is a process that helps farmers better understand the land they cultivate. With this survey, a detailed map is created showing the elevations, depressions, and slopes of the terrain.

  • Land Registration and Cadastre (RGG): It contributes to the legal registration of properties, which is necessary for land ownership and rights.

    Elevation Survey: Provides data on the elevations and depressions of the land, helping designers and contractors understand the terrain and plan construction accordingly.

  • Designing Profiles and Sections: Used in the design of road profiles, canals, and rivers, allowing for the precise planning of infrastructure works.

  • Volume Measurement: It is useful for measuring volumes of earth, which is important in earthworks, construction, and excavation projects.

  • Determining Fill Volumes: Helps calculate the volume of material needed for fill, such as in road construction, dams, and other structures.

  • Licensing and Inspection of Works: It is a crucial part of the process of obtaining licenses for civil construction works and provides vital information for inspections during the execution of the work.

  • Project Planning: Serves as the foundation for the development of engineering, architecture, and urban planning projects, allowing for the creation of detailed graphical representations of the land surface.

    A topographic survey is essential for land management, project planning, and ensuring legal compliance in many contexts, such as property registration and construction licensing.

Who is qualified to carry out a topographical survey in Portugal?

IMG-20221228-WA0004

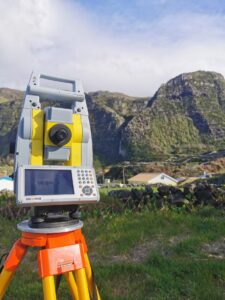

The execution of a topographical survey is a task that requires the expertise of a professional known as a surveyor. It is the surveyor who determines the type of topographical survey required and conducts the essential measurements using specialized measuring equipment, ensuring accuracy and compliance with applicable legal standards. It is also possible to rely on collective entities, whether public or private, to carry out topographical surveys.
